SQM Series 18.5mm Flag-type Pull-out No-adjustment Damping Hinge: Redefine Door Hardware with Flagship Innovation

1. Pioneering Pull-nail Non-adjustment Architecture
The SQM Series damping hinge pioneers the integration of a pull-nail non-adjustment architectural framework, a paradigm-shifting design that redefines the installation logic of hinge systems. Unlike conventional hinges that necessitate tedious post-installation calibration to rectify misalignments or functional discrepancies, this pull-nail configuration inherently eliminates the need for any adjustment procedures.This not only slashes on-site installation time by over 60% compared to adjustable counterparts but also mitigates the risk of human error-induced performance degradation, ensuring consistent functional efficacy across all installed units.

2. Industry-transcending 18.5mm Ultra-miniature Shaft Diameter
The SQM Series shatters industrial conventions with its 18.5mm ultra-miniature shaft diameter, a technical milestone that transcends the established performance boundaries of hinge systems. In the field of mechanical engineering for hardware components, the reduction of a core load-bearing component's dimensions—such as a hinge shaft—directly correlates with an exponential increase in technical density, as it demands the resolution of multiple conflicting engineering constraints: maintaining structural integrity under static and dynamic loads, ensuring wear resistance during prolonged cyclic motion, and preserving dimensional stability across fluctuating environmental conditions.

3. Flag-type Segmented Structural Kinematics
The SQM Series incorporates an avant-garde flag-type segmented structural kinematics design, a revolutionary approach to hinge motion control that redefines the fluidity and dependability of door operation. Unlike traditional integral hinge structures, which rely on a single pivot point to govern the entire range of door motion—often leading to non-uniform angular velocity, excessive stress concentration at the pivot. Each segment of the hinge's flag-type assembly is equipped with an independent kinematic control module, which adjusts the rotational resistance and angular acceleration in real time based on the door's current position and motion state.

4. Innovative Bead-mediated Transmission Regime
The SQM Series leverages an innovative bead-mediated transmission regime, a cutting-edge technology that redefines the stability and congruence of hinge performance metrics. Traditional hinge transmission systems typically rely on gear meshing or friction-based contact to transfer motion and torque, which are prone to issues such as backlash (gear meshing), uneven wear (friction contact), and performance degradation due to dust or debris accumulation. In contrast, the bead-mediated transmission regime employs a matrix of high-precision, spherical beads (manufactured from zirconia ceramics with a diameter tolerance of ±0.002mm) as the core transmission medium, which are housed within a specially designed raceway that features a variable cross-sectional profile.

5. Modularly Replaceable Dampers
The SQM Series features modularly replaceable dampers, a design innovation that enhances the hinge's durability, maintainability. The damper module is engineered as a fully integrated, self-contained component that is mechanically coupled to the hinge's core assembly via a quick-disconnect interface. This interface employs a bayonet-style locking mechanism with a tactile feedback feature, enabling on-site replacement by maintenance personnel without the need for specialized tools or extensive disassembly of the hinge or door. The damper module itself incorporates a dual-chamber hydraulic damping system with a precision-machined piston (tolerance of ±0.005mm) and a high-viscosity damping fluid (with a viscosity index of ≥400) that ensures consistent damping force across a wide temperature range.

6. Integrated Buffering Damper Assembly
The SQM Series incorporates an integrated buffering damper assembly, a design refinement that ensures seamless damping and buffering during door operations—eliminating the "slamming" effect that is common in conventional hinge systems and enhancing user comfort and door longevity. Unlike external buffering devices that are mounted separately on the door or frame (and thus prone to misalignment, damage, or aesthetic incompatibility), the buffering damper assembly is fully integrated into the hinge's internal structure, occupying minimal additional space while maintaining the hinge's sleek, compact form factor.

7. Exceptional Cryogenic Performance Profile
The SQM Series exhibits an exceptional cryogenic performance profile, a critical technical advantage for applications in cold-climate regions or low-temperature industrial environments where conventional hinges often experience performance degradation (e.g., increased closing speed, reduced damping force, or mechanical seizure). Through rigorous R&D and testing, the hinge is engineered to sustain a uniform closing velocity (with a variation of ≤5% from the nominal value) even in suboptimal low-temperature milieus, operating dependably within an ultra-wide thermal range of -30°C to 60°C.

8. Four Sophisticated Chromatic Variants

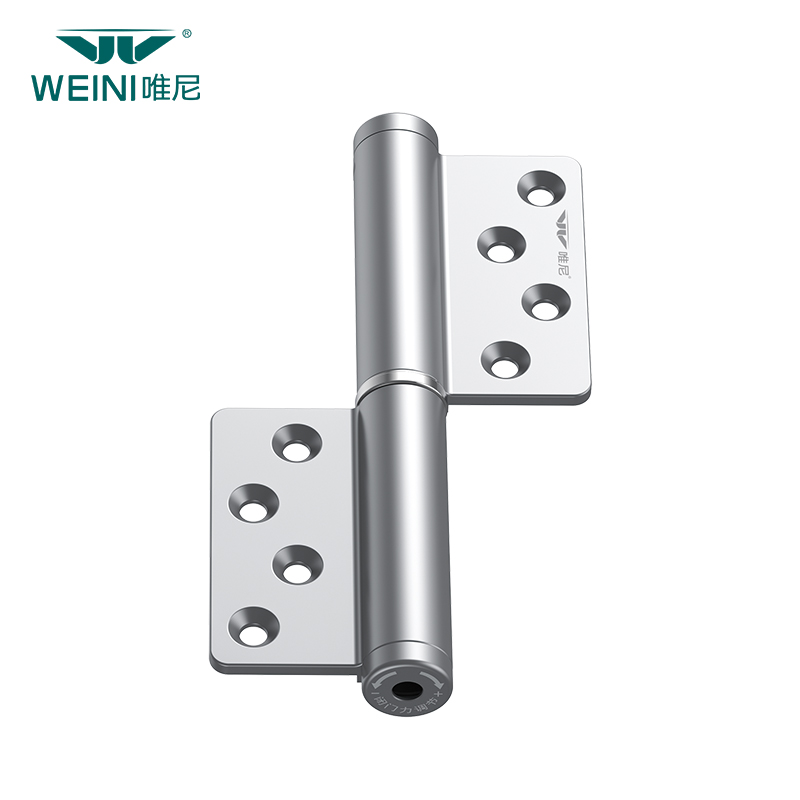

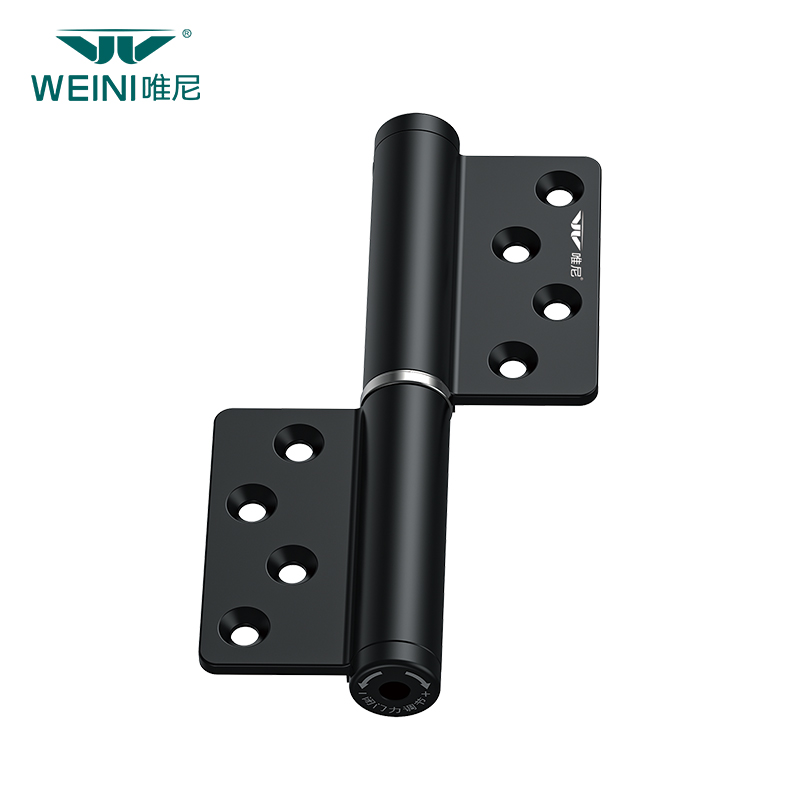

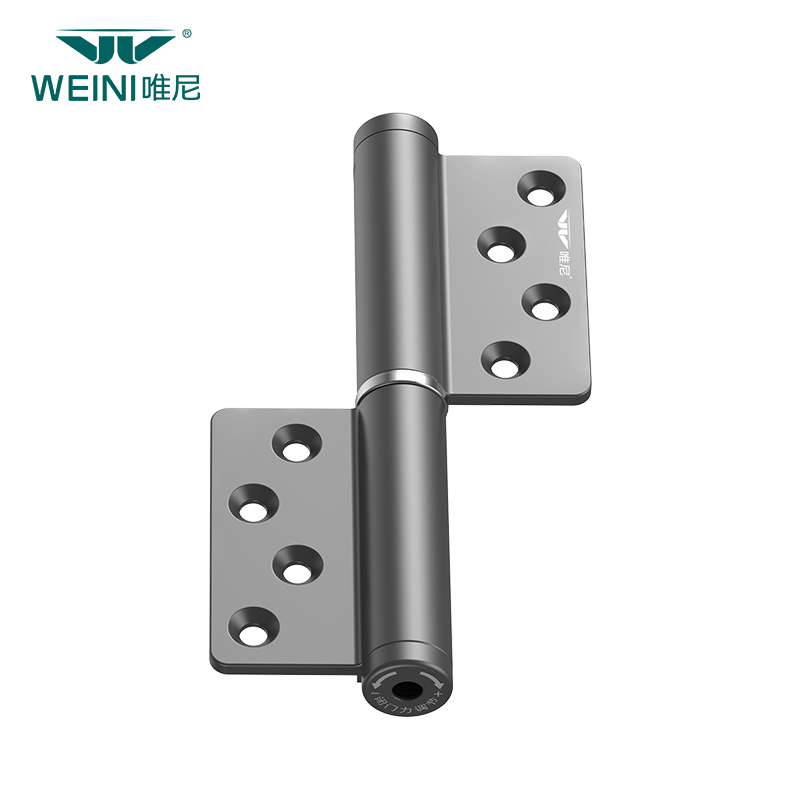

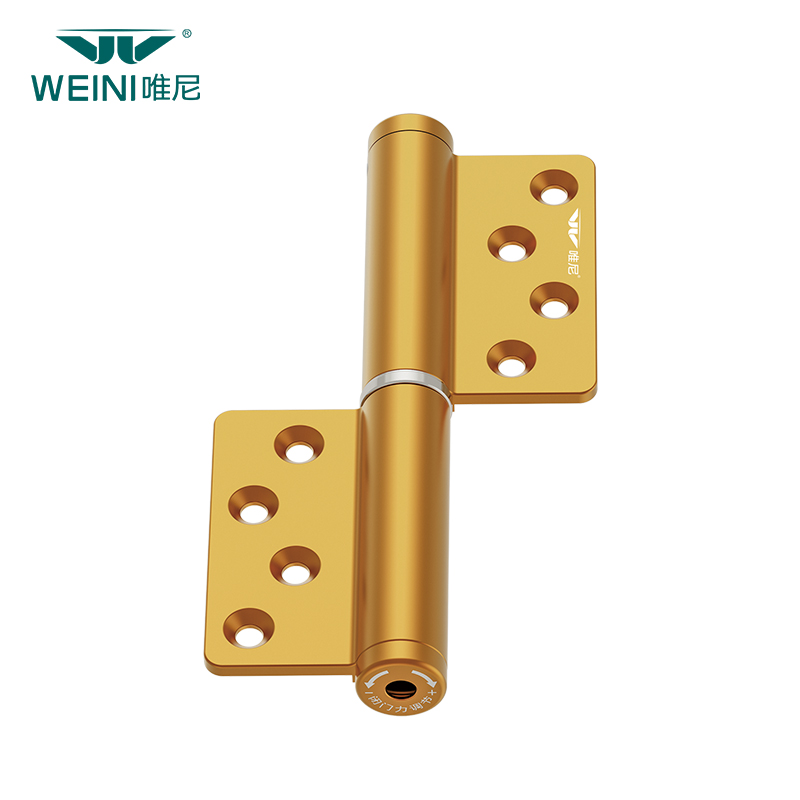

The SQM Series is offered in four sophisticated chromatic variants—Golden, Silver, Black, and Grey—each engineered to meet the highest aesthetic and functional standards while effortlessly harmonizing with a plethora of interior and exterior design ontologies. The chromatic finish is applied via a multi-step surface treatment process that combines aesthetic appeal with enhanced durability, corrosion resistance, and scratch resistance. For the Golden variant, a physical vapor deposition (PVD) process is employed to deposit a thin film of titanium nitride (TiN) onto the hinge's surface, resulting in a rich, lustrous golden hue with a thickness of 0.5-1.0μm. Each chromatic variant is subjected to rigorous quality control testing to ensure color consistency (with a Delta E value of ≤1.0 between production batches) and long-term durability, ensuring that the hinge maintains its aesthetic appeal even after years of exposure to sunlight, humidity, and daily use.

9. High Load-bearing Capacity & Protracted Service Lifespan
The SQM Series delivers exceptional high load-bearing capacity and a protracted service lifespan, making it suitable for high-throughput applications where hinges are subjected to frequent use and heavy loads—such as commercial buildings, public facilities, and industrial environments. Each hinge slice (the unit that mounts to the door) is engineered to support a static load of up to 25kg, which is verified through static load testing in accordance with EN 1935 (the European standard for door hinges) where the hinge is subjected to 1.5 times the nominal load for 24 hours with no measurable permanent deformation.

10. Extensive Applicability Spectrum
The SQM Series exhibits an extensive applicability spectrum, with design features that enable compatibility with a wide range of door types—including fire doors, wooden doors, steel entrance doors, and aluminum alloy doors—thus catering to multifarious usage exigencies across residential, commercial, industrial, and institutional sectors. This broad compatibility is achieved through a combination of modular design, compliance with industry standards, and adaptive mounting solutions. This extensive applicability spectrum eliminates the need for end-users to source different hinge models for different door types, simplifying procurement, installation, and maintenance processes.
